Product ID : 32842031836
Price : $128.99
Discount Price : $109.64

* Special discount only for limited time

You can buy this product on link below




Raspberry Pi Compute Module 3 Lite Accessory Pack Type B (no CM3L) With 7inch HDMI LCD, DS18B20, Power Adapter, Micro SD Card for sale, Raspberry Pi Compute Module 3 Lite Accessory Pack Type B (no CM3L) With 7inch HDMI LCD, DS18B20, Power Adapter, Micro SD Card best price,Raspberry Pi Compute Module 3 Lite Accessory Pack Type B (no CM3L) With 7inch HDMI LCD, DS18B20, Power Adapter, Micro SD Card cheap,Raspberry Pi Compute Module 3 Lite Accessory Pack Type B (no CM3L) With 7inch HDMI LCD, DS18B20, Power Adapter, Micro SD Card cheapest, Raspberry Pi Compute Module 3 Lite Accessory Pack Type B (no CM3L) With 7inch HDMI LCD, DS18B20, Power Adapter, Micro SD Card sale,Raspberry Pi Compute Module 3 Lite Accessory Pack Type B (no CM3L) With 7inch HDMI LCD, DS18B20, Power Adapter, Micro SD Card free pdf,Raspberry Pi Compute Module 3 Lite Accessory Pack Type B (no CM3L) With 7inch HDMI LCD, DS18B20, Power Adapter, Micro SD Card Where To Buy,#Raspberry Pi Compute Module 3 Lite Accessory Pack Type B (no CM3L) With 7inch HDMI LCD, DS18B20, Power Adapter, Micro SD Card Discount,#Raspberry Pi Compute Module 3 Lite Accessory Pack Type B (no CM3L) With 7inch HDMI LCD, DS18B20, Power Adapter, Micro SD Card Review,#Raspberry Pi Compute Module 3 Lite Accessory Pack Type B (no CM3L) With 7inch HDMI LCD, DS18B20, Power Adapter, Micro SD Card compare Price,#Raspberry Pi Compute Module 3 Lite Accessory Pack Type B (no CM3L) With 7inch HDMI LCD, DS18B20, Power Adapter, Micro SD Card Who Sells The Cheapest,#Raspberry Pi Compute Module 3 Lite Accessory Pack Type B (no CM3L) With 7inch HDMI LCD, DS18B20, Power Adapter, Micro SD Card The Cheapest Online,What Is The Best Price For Raspberry Pi Compute Module 3 Lite Accessory Pack Type B (no CM3L) With 7inch HDMI LCD, DS18B20, Power Adapter, Micro SD Card ,#Raspberry Pi Compute Module 3 Lite Accessory Pack Type B (no CM3L) With 7inch HDMI LCD, DS18B20, Power Adapter, Micro SD Card download ebook PDF EPUB, book in Polish language,[download] Raspberry Pi Compute Module 3 Lite Accessory Pack Type B (no CM3L) With 7inch HDMI LCD, DS18B20, Power Adapter, Micro SD Card in PDF format,Raspberry Pi Compute Module 3 Lite Accessory Pack Type B (no CM3L) With 7inch HDMI LCD, DS18B20, Power Adapter, Micro SD Card download free book in PDF format,Raspberry Pi Compute Module 3 Lite Accessory Pack Type B (no CM3L) With 7inch HDMI LCD, DS18B20, Power Adapter, Micro SD Card amazon,Raspberry Pi Compute Module 3 Lite Accessory Pack Type B (no CM3L) With 7inch HDMI LCD, DS18B20, Power Adapter, Micro SD Card Alibaba, Best Reviews Of Raspberry Pi Compute Module 3 Lite Accessory Pack Type B (no CM3L) With 7inch HDMI LCD, DS18B20, Power Adapter, Micro SD Card,Raspberry Pi Compute Module 3 Lite Accessory Pack Type B (no CM3L) With 7inch HDMI LCD, DS18B20, Power Adapter, Micro SD Card epub,Raspberry Pi Compute Module 3 Lite Accessory Pack Type B (no CM3L) With 7inch HDMI LCD, DS18B20, Power Adapter, Micro SD Card Limited Time,Raspberry Pi Compute Module 3 Lite Accessory Pack Type B (no CM3L) With 7inch HDMI LCD, DS18B20, Power Adapter, Micro SD Card Get Now,Buy Raspberry Pi Compute Module 3 Lite Accessory Pack Type B (no CM3L) With 7inch HDMI LCD, DS18B20, Power Adapter, Micro SD Card Discount,








Item specifics




  • Model Number:
    Compute Module 3 Lite Acce B


  • Demo Board Type:
    ARM


  • Brand Name:
    Waveshare


  • Model name:
    Compute Module 3 Lite Acce B


  • Compute Module IO Board Plus:
    Compatible with the Compute Module IO Board V3 from the Raspberry Pi


  • Include:
    IO board, 7inch HDMI LCD, DS18B20, Power adapter, etc


  • For :
    Compute Module 3 Lite








Product Description





(NOTE: US Standard adapter will be sent in the package by default, if want to change to EU adapter, please leave us a message in the order)








Raspberry Pi Compute Module 3 Lite Accessory Pack Type B (no CM3L)


DESCRIPTION


Raspberry Pi Compute Module 3 Lite Accessory Pack Type B, CM3 IO Board, HDMI LCD, DS18B20, IR Remote Controller, Micro SD Card


Overview


Since the Raspberry Pi Foundation released the Compute Module 3 Lite, you may have been watching it for some time, don't know how to get started. Now it's time to get moving. We prepare this accessory pack for you to evaluate the Compute Module 3 Lite (not included) quickly, reducing your development cycle.


The key parts in this Compute Module 3 Lite accessory pack includes:



  • Compute Module IO Board Plus: Extend kinds of interfaces from CM3, such as USB, HDMI, just like the regular Pi, to help evaluating

  • 7inch HDMI LCD (C): The ultra high definition touch screen LCD, provides an easy way to achieve Human-Machine-Interaction


7inch HDMI LCD (C) Features



  • 7inch IPS screen, 1024×600 high resolution

  • Capacitive touch control

  • Supports popular mini-PCs like Raspberry Pi, BB Black, etc.

    • When working with Raspberry Pi, supports Raspbian, Ubuntu, WIN10 IoT, single touch, and driver free

    • When working with other mini-PCs, driver is required and should be developed by users


  • Not only for mini-PCs, it can work as a computer monitor just like any other general HDMI screen

    • When works as a computer monitor, supports Windows 10/8.1/8/7, five-points touch, and driver free


  • Backlight can be turned off to lower power consumption


Compute Module IO Board Plus Features



  • Compatible with the Compute Module IO Board V3 from the Raspberry Pi Foundation

  • Raspberry Pi GPIO header, for connecting sorts of Raspberry Pi HATs

  • Arduino connectivity, also supports Arduino shields

  • 1-WIRE interface, for connecting single-bus devices like DS18B20

  • 4x keys, 4x LEDs, 1x Buzzer, for I/O testing

  • Onboard USB HUB, allows connecting more USB devices

  • IR receiver, IR remote control is available

  • Onboard USB TO UART, for serial debugging

  • Sensor interface

  • 10-bit ADC, 38KSPS, 11-ch (6-ch for Arduino interface, 5-ch for sensors)

  • 16-bit DAC, 2-ch

  • Onboard RTC, one of the most common and useful functions


What's on the Compute Module IO Board Plus


Compute-Module-IO-Board-Plus-intro



  1. Compute Module interface: for connecting Compute Module 3 OR Compute Module 3 Lite

  2. Compute Module GPIO header: breakout all the Compute Module pins

  3. Raspberry Pi GPIO header: for connecting Raspberry Pi HATs

  4. CSI interface: camera ports, for connecting Raspberry Pi Camera

  5. DSI interface: display ports, for connecting Raspberry Pi LCD

  6. HDMI port

  7. USB ports: for connecting USB devices

  8. USB SLAVE interface: allows you to burn system image in to Compute Module 3

  9. USB TO UART interface: for serial debugging

  10. Arduino header: for connecting Arduino shields

  11. AD/DA input/output screw terminals

  12. 1-WIRE interface: for connecting single-bus devices like DS18B20

  13. Sensor interface

  14. Power port: 5V 2.5A

  15. FE1.1S: USB HUB chip

  16. 12MHz crystal

  17. CP2102: USB TO UART converter

  18. Micro SD card slot: insert a Micro SD card with pre-burnt system, to start up Compute Module 3 Lite

  19. TLC1543: AD converter

  20. DAC8552: 16-bit DAC, 2-ch

  21. DS3231: high-precision RTC chip, I2C interface

  22. RTC battery holder: supports CR1220 batteries

  23. Voltage regulator: 3.3V / 2.5V / 1.8V

  24. LFN0038K: IR receiver

  25. Buzzer

  26. Power indicator

  27. ACT indicator: indicating the Micro SD card status

  28. User LEDs

  29. User Keys

  30. BOOT selection

    • EN: enable the PC to access SD card/eMMC through USB SLAVE

    • DIS: the Compute Module will boot from SD card/eMMC


  31. VGx power selection: config the I/O level

  32. USB HUB enable jumper: HUB enable and USB SLAVE power selection

  33. ADC/DAC configuration: config the power supply and reference voltage of ADC/DAC

  34. Peripheral configuration: config the control pins of UART, user keys, user LEDs, 1-WIRE interface, IR receiver, and buzzer

  35. Arduino AD selection

    • connect 1 and 2: Arduino A0-A5 as digital control pin

    • connect 2 and 3: Arduino A0-A5 as AD input



Selection Guide


1

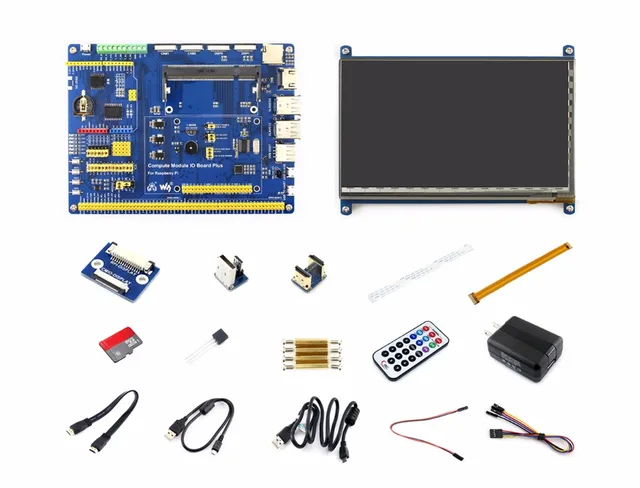

PACKAGE CONTENT


Weight: 0.659 kg



Compute Module


The Compute Module 3 Lite is not included.


Accessory Pack




  1. Compute Module IO Board Plus x1

  2. 7inch HDMI LCD (C) x1

  3. DS18B20 x1

  4. IR remote controller x1

  5. LCD adapter x1

  6. HDMI cable x1

  7. HDMI adapter x1

  8. USB adapter x1

  9. RPi screws pack (4pcs) x1

  10. 22PIN FFC x1

  11. RPi Zero V1.3 Camera Cable 15cm x1

  12. Power adapter US standard 5V/3A micro x1

  13. USB type A plug to micro B plug cable 35cm x1

  14. USB type A plug to micro B plug cable 120cm x2

  15. Jumper Wire 4-pin to separated pins x2

  16. Jumper Wire 2-pin 2.54-pitch 200mm x2

  17. Micro SD Card 16GB x1


5










Packaging Details




  • Unit Type:
    piece


  • Package Weight:
    0.8kg (1.76lb.)


  • Package Size:
    15cm x 20cm x 10cm (5.91in x 7.87in x 3.94in)
